🚀 Quick Start
⚠️ Important Note: When using this tool, please ensure compliance with data security regulations and company policies. Access databases only with proper authorization and apply appropriate security measures to the generated documents.
Prerequisites
- Go 1.24+ or higher (required only for source code compilation)
- Supported target database (MySQL, PostgreSQL, Oracle, or SQLite)
- Database connection permissions (recommended for use in test environments)
Installation Methods
Option 1: Download Pre-compiled Binary (Recommended)
Download the latest pre-compiled version for your operating system from the Releases page:
- Windows: GenDict_Windows_x86_64.zip
- Linux: GenDict_Linux_x86_64.tar.gz
- macOS: GenDict_macOS_x86_64.tar.gz
After downloading, extract and use it directly without additional dependencies.
Option 2: Compile and Install from Source
# Clone the project code
git clone https://github.com/ourcolour/GenDict.git
cd GenDict
# Compile and install
go mod download
go build -o gen-dict main.go
# Move the executable to a directory included in the PATH environment variable, e.g.
sudo mv gen-dict /usr/local/bin/
Basic Usage
- Start the application:
gen-dict

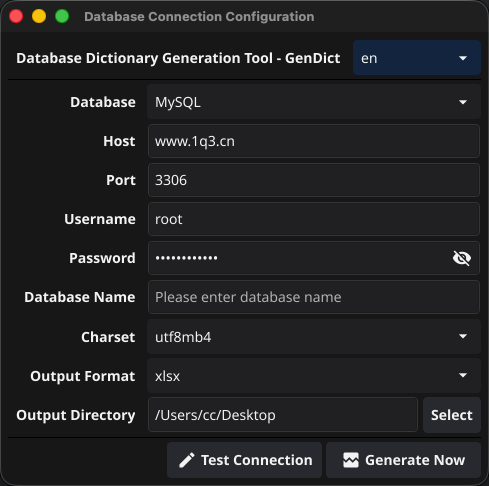

Configure connection: Enter the database connection information in the GUI interface
- Host address, port number
- Database name
- Username and password
- Database type (auto-detected)
Set output:
- Select output format (Excel/Markdown)
- Specify the save path
Generate document: Click the "Generate" button, wait for completion, and then check the output file
📋 Supported Databases
The current tool supports the following database types.
Database | Status | Vesion Requirement | Supported Features |
---|---|---|---|
MySQL | ✅ Supported | 5.7+ | Tables, Views, Indexes, Comments |
SQLServer | ✅ Supported | 2008+ | Tables, Views, Indexes, Comments |
PostgreSQL | ✅ Supported | 9.6+ | Tables, Views, Indexes, Comments |
Oracle | ✅ Supported | 11g+ | Tables, Views, Indexes, Comments |
SQLite | ✅ Supported | 3.0+ | Tables, Views |
